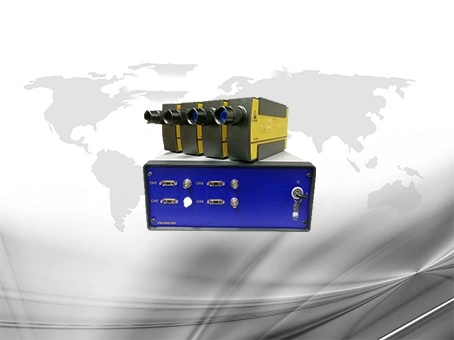

The multi-point laser vibrometer is a 4-point self-synchronous laser vibrometer system that can synchronously provide measurement information of 4 points. The laser wavelength is 633nm, the safety level is Class II, and the measurement distance can reach 20 meters in the scene of affixing reflective film. Users can selectively measure displacement, velocity and acceleration as needed. The instrument adopts a fully digital demodulation system, supports digital and analog output, and supports external triggering.
Main parameters
Measurement distance: 0.2-20m
Frequency range: 0.1Hz-100kHz
Speed range: 10mm/s-2m/s
Resolution: 0.02μm/s/√Hz
Synchronicity: 20n/S
Product advantages
1 Non-contact measurement, no additional mass influence, suitable for more environments (such as high temperature, strong magnetism, corrosive materials, etc.);
2 Highly integrated, single-person portable;
3 Analog/digital dual-mode output;
4 Mobile power supply, convenient for outdoor measurement;
5 Ultra-high precision, can be used as a calibration reference source;
