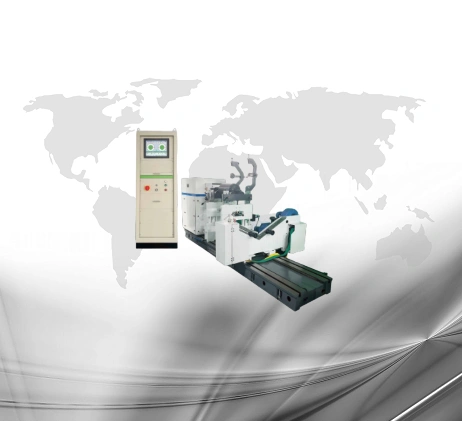

This machine is especially suitable for balancing the rotors in medium-motor,air blower,diese,centrifuge,water pump,as well as the spindle in medium machine tool.
| Type of machine | H4U | |
| Max.mass of workpiece | 1000kg | |
| Max.diameter of workpiece | φ1600mm | |
| Distance bewween wobearing supports of the workpiece journal | minimum spacing | 70mm |
| Maximum distance from transmission flange to right support center | 2060mm | |
| Journal diameter of workpiece | Standard roler support | φ12~φ100mm |
| Upto(opiona) | φ200mm | |
| Balancing speed(Universal joint shaft drving) | 600/1250 r/min带齿轮箱 | |
| Motor power | 4kW | |
| Fiated torqueofurnerssl join shat | Accesorias | 250N-m
|
| Optional supply | 8ON·m | |
| Minachieveable residual unbalanceEmar/perplane | 0.25g.mm/kg | |
| Unbalance roduction ratio URR | 95% | |
| Dimension(LxWxH) | 3120×800×1420mm | |
