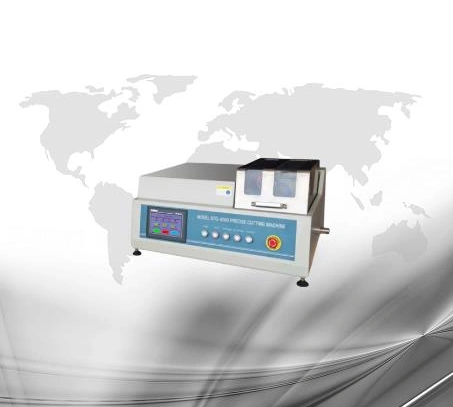

GTQ5000 high-speed precision cutting machine is suitable for precision cutting of metal, electronic components, ceramic materials, crystals, cemented carbide, rock samples, mineral samples, concrete, organic materials, biological materials (teeth, bone) and other materials. The positioning accuracy of the equipment is high. Wide speed range; Strong cutting ability; Strong circulation cooling system; Feed speed can be preset; Touch screen control display, easy to operate and control; Automatic cutting can reduce the fatigue of the operator and ensure the consistency of sample making. Large bright cutting room with safety switch. It is one of the ideal equipment for preparing high-quality samples for industrial and mining enterprises and scientific research institutes.
| main technical parameters： | |
| feeding speed： | 0.01~3.00mm/s（The adjustment step size is 0.01） |
| speed of grinding wheel： | 500~5000rpm |
| maximum stroke ： | Y轴200mm |
| Slice size ： | 200×32×1mm |
| cutting power： | 1000W |
| power ： | 220V 50Hz |
| boundary dimension： | 820mm×735mm×435mm（Length × width × height） |
