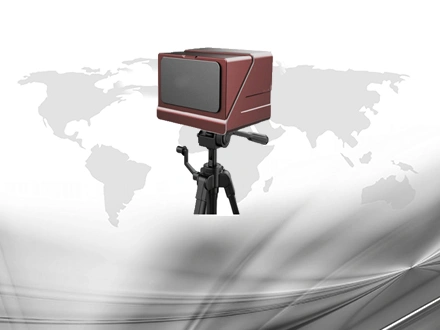

Designed for material testing in high temperature environments, it is plug-and-play and does not require calibration. Through advanced optical and laser speckle technology, it can accurately capture material deformation data even at extreme temperatures, and is suitable for tensile, compression and creep testing of high temperature alloys and composite materials. Its unique high temperature optical path system and surface treatment technology ensure the accuracy and stability of the measurement, greatly improving the test efficiency and reliability.
Product features
1 Non-contact measurement
2 Full-field measurement
3 Two-dimensional measurement
4 Not limited by temperature: can measure under high and low temperature conditions, and can measure temperature range -190℃-2300℃
5 Equipped with high-temperature test optical path system and high-temperature filter to eliminate high-temperature radiation interference
6 Equipped with high-temperature image processing software module
7 Not limited by sample shape: plate, rod, sheet, wire, film, concrete, soft material, biomaterial, etc.
8 Not limited by strain range, can measure strain range: 0-1000%
9 Not limited by strain direction: can simultaneously measure axial and lateral elongation
10 Embedded software, easy to operate
11 Meet the existing JJG762-2007 0.5 level accuracy requirements
